FDF Series Solenoid Valves
TEL：
Content
FDF series
FDF series solenoid valves are divided into Direct-acting and plot-type,mainly used for Refrigerating air conditioners and heat pumps System refrigerant control.
Features

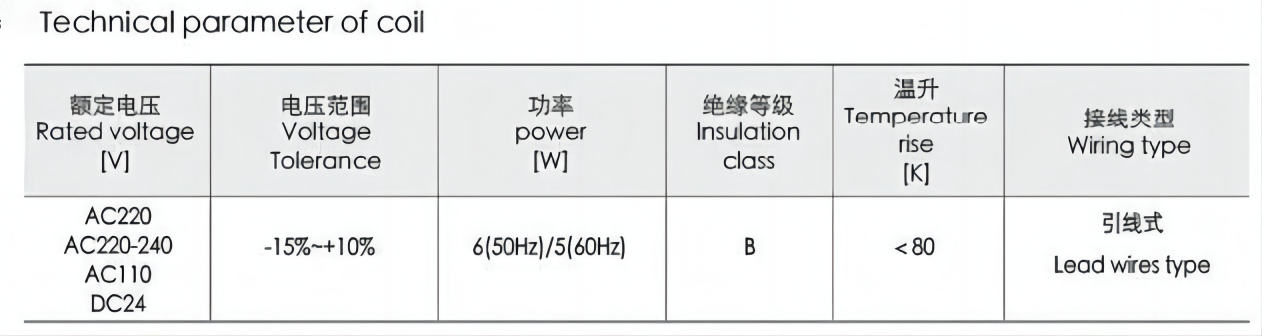

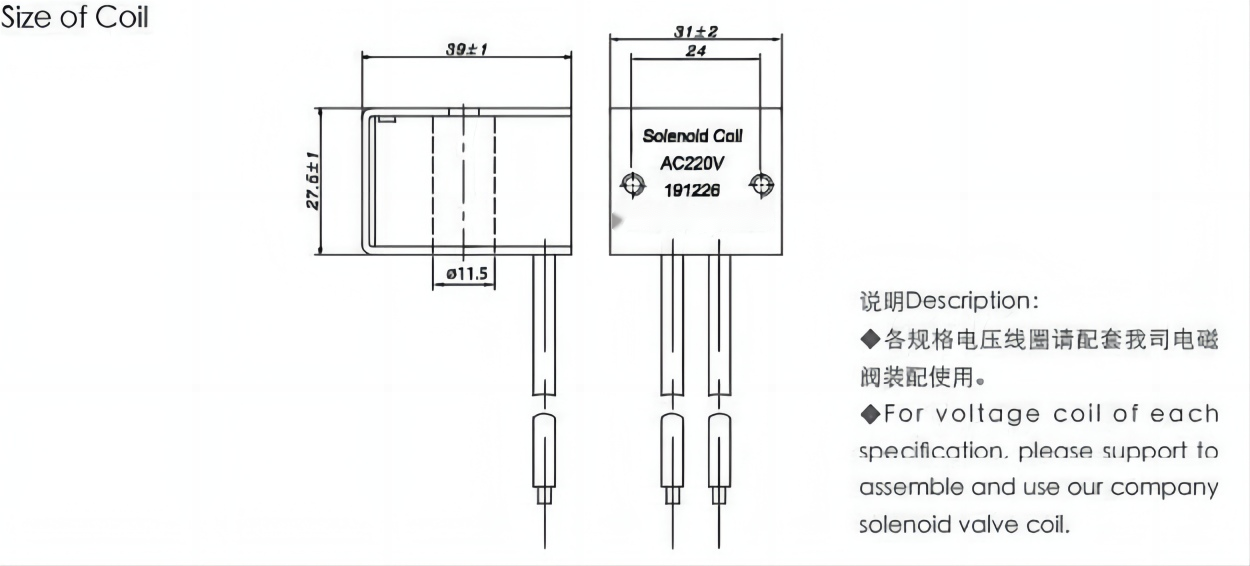

*Coil: low power consumption and good reliability.
*Good opening performance and large maximum workingpressure difference.

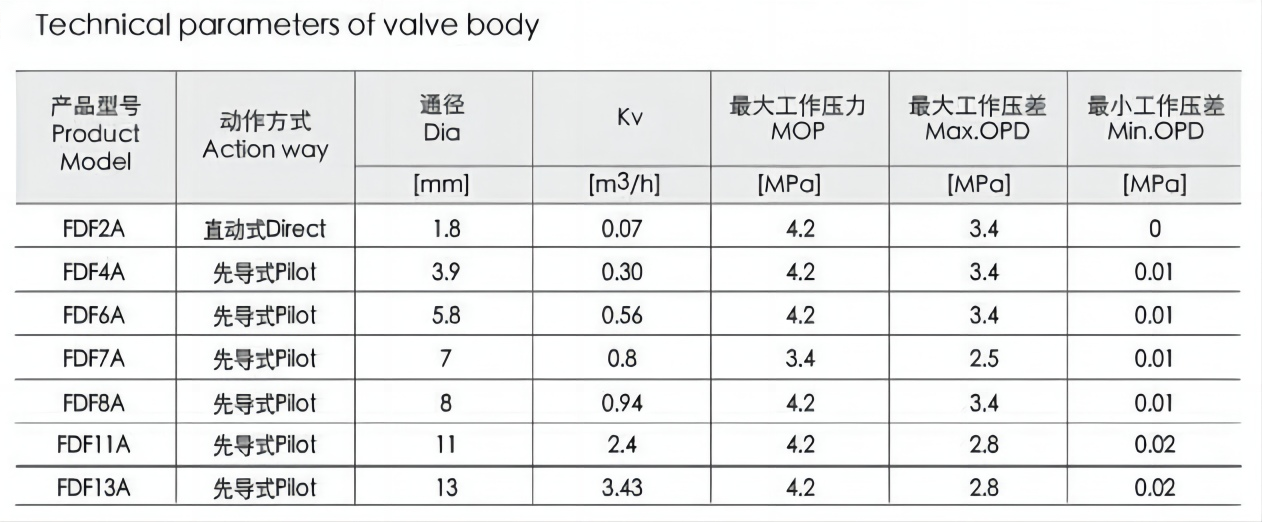

General specification
*Applicable refrigerant: R22，R407C，R410A etc
*Applicable medium temperature:-30°C-+120°C
*Applicable ambient temperature: -30°C-+55°C
*Relative humidity: below 95%
*Maximum work pressure: 4.2MPa
*Certified: CQC，TUV，UL
