SDF 0.5 Series Solenoid Valve

Category:
Keywords:

TEL:

Content

SDF 0.5 Series

SDF 0.5 series solenoid valves are widely used in humidifer systems of automatic control of waterway control.

Features

*Coil: Low power consumption and good reliability.

*Good opening performance

*Small volume

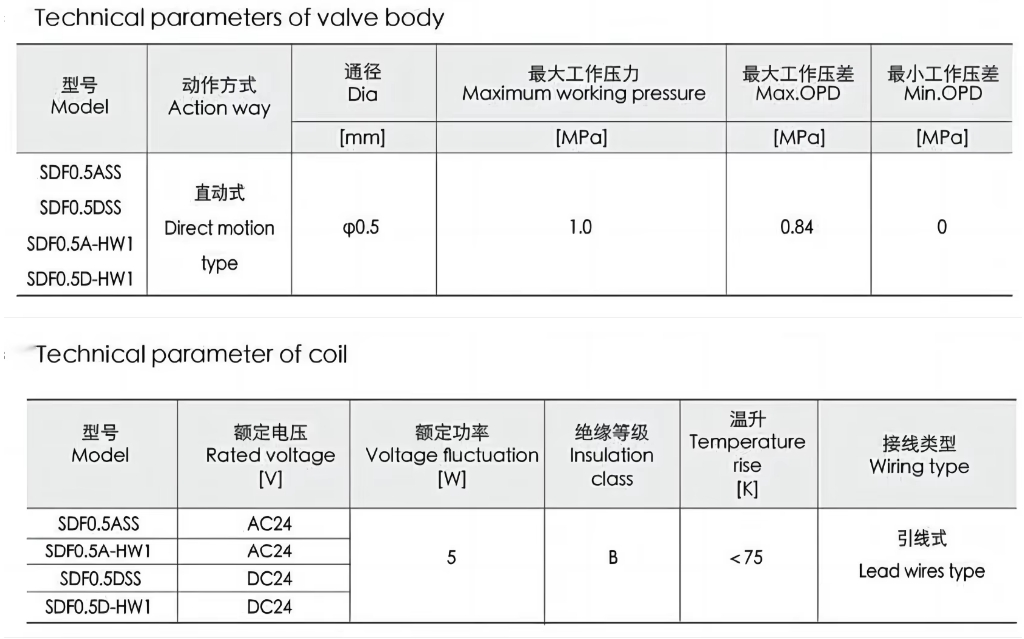

General specification

*Applicable refrigerant: water

*Medium temperature:+1°C-60°C

Ambient temperature: +5°C-+45°C.

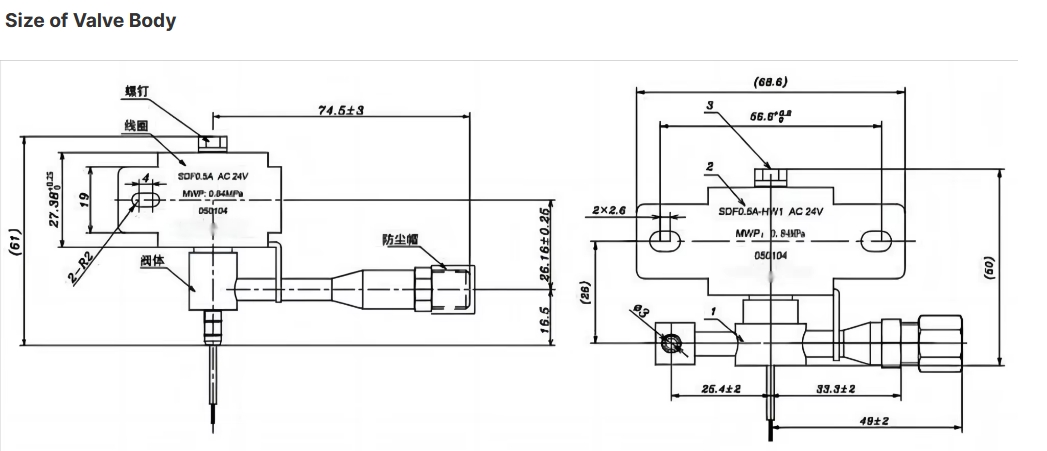

Installation location:Inlet pipe Coil facing upcoil perpendicular to valve bodyvalve body perpendicularityis within 15°
